Microjet Inkjet Recorder
Description
Fuji Electric's Microjet Recorder Series (PHC, PHA, PHE) introduces a revolutionary inkjet recording system with high-precision color printing and reduced mechanical wear. With up to 12 channels, six color printing, and built-in report generation, it’s ideal for industrial data logging and long-term monitoring.
Features
- Inkjet mechanism built on silicon chip with piezo technology
- High-definition color printing (6 colors)
- 100mm (PHC/PHE) and 180mm (PHA) chart widths

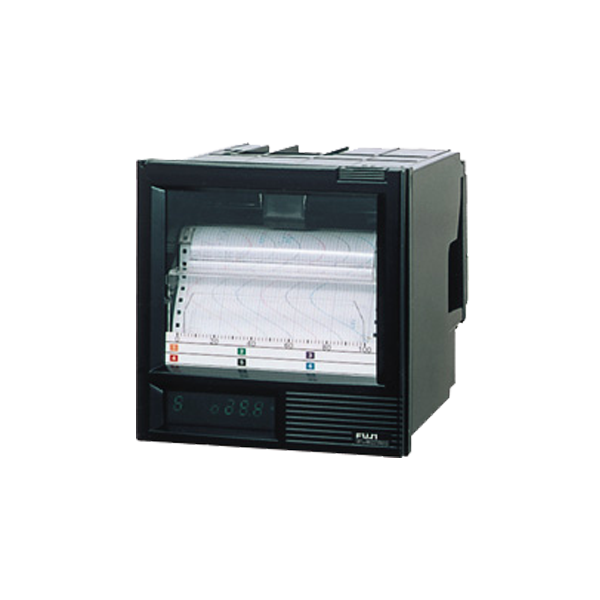

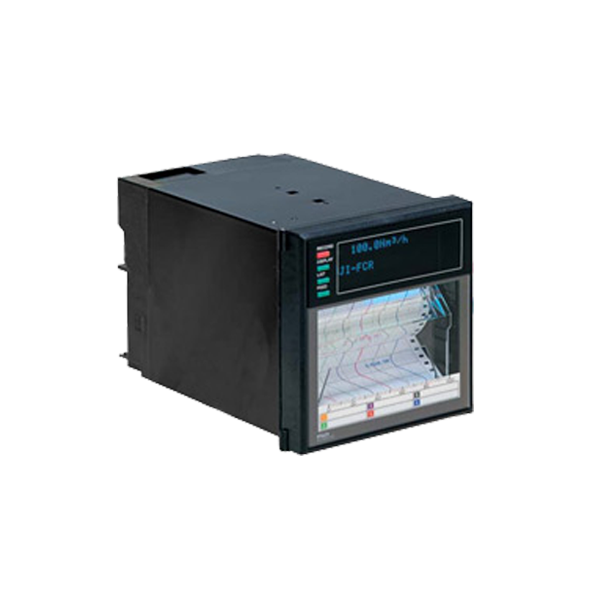

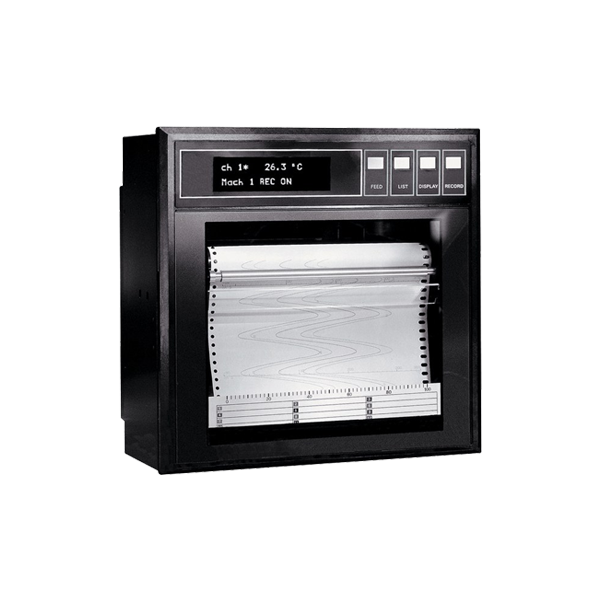

- Up to 12-channel continuous trace (PHA), 6-channel (PHC), or 6-channel intermittent (PHE)
- Digital printing and tagging in channel colors
- Chart speed up to 1500mm/h, continuous and intermittent modes
- RS-485 and T-Link communication options
- Daily, total, parameter, and logging reports
- Compact design with simple operation (4-key front)
- Water/sunlight-resistant ink; long life cartridges (6 months)
- Input: TC, RTD, DCV, mA; with calculation features like scaling and root extraction
Specifications
Input Types: TC (J, K, R, B, S, etc.), RTD, ±50mV to ±50V DC, 4–20mA DC (shunt resistor)
Display: PHC/PHA: Fluorescent (2-line); PHE: 6-digit LED
Recording Accuracy: ±0.25% (PHC/PHA), ±0.2% (PHE)
Alarms: Up to 12 relays depending on model
Chart Speed: 5–1500mm/h (adjustable)
Power Supply: 100–240V AC or 24V DC
Environmental: Temp 0–50°C, Humidity 20–80%RH
Mounting Depth: 199mm; Mass: PHC ~2.1kg, PHA ~6.0kg, PHE ~1.5kg
Communication: RS-485, T-Link
Functions: Tag print, alarm print, burnout, zoom trace, totalizer, logging, auto range
