Perekam Tanpa Kertas

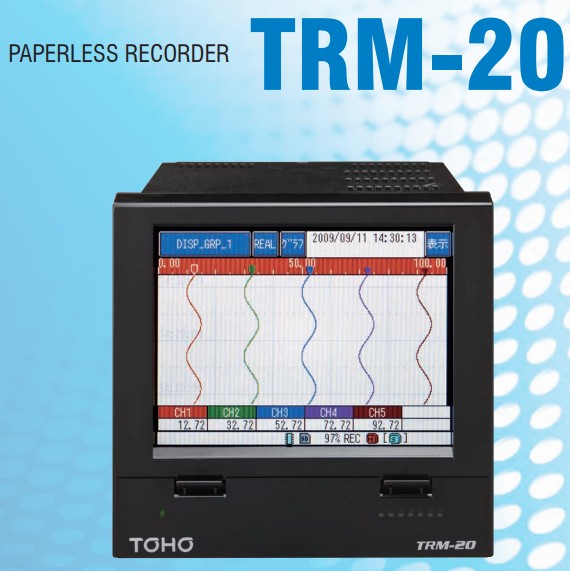

Paperless Recorder TRM-20A
Deskripsi
TRM-20A adalah perekam tanpa kertas berkinerja tinggi yang mudah dioperasikan dengan panel sentuh LCD warna TFT 5,7 inci. Mendukung 6, 9, atau 12 kanal input, komunikasi Ethernet, penyimpanan kartu SD berkapasitas besar, dan proteksi tahan air/debu IP65.
Fitur
- 5.7-inch TFT color LCD touch panel (QVGA)
- Selectable input channels: 6, 9, or 12 CH
- Multi-range input (thermocouple, RTD, DC voltage, DC current)
- PC support software supplied as standard accessory
- Ethernet communication (10BASE-T, HTTP/FTP/Modbus TCP) as standard
- Large capacity SD card storage (SD/SDHC up to 32GB)
- IP65 waterproof and dustproof (front panel)
- CE standard compliant
- Backlight auto-off screen saver
- RS-485 Modbus RTU (optional)
Spesifikasi
Model
TRM-20A
Input Channels
6, 9, or 12 (selectable)
Input Types
Thermocouple (K, E, J, T, C, N, PLII, U, L, R, S, B, PR40-20, AU-Fe), RTD (Pt100, JPt100), DC Voltage (-10 to +10mV, 0 to 20mV, 0 to 50mV, -0.2 to +0.2V, -1 to +1V, -10 to +10V, 0 to 5V), DC Current (4 to 20mA, external shunt resistance)
Measurement Cycle
100ms
Data Save Cycle
1 sec to 60 min (100ms for sub-data save)
Display
5.7-inch TFT color LCD (QVGA), 16 colors, touch panel
Accuracy
±(0.1% + 1 digit) of input range
Memory
Approx. 100MB, SD (Max 2GB) / SDHC (Max 32GB)
Data Format
Approx. 120 bytes per save cycle (6-CH), Approx. 30 bytes per save cycle (6-CH)
Communication
Ethernet 10BASE-T (HTTP Server, FTP Server, Modbus TCP), RS-485 Modbus RTU
Alarm
Up to 4 per channel, 1 open collector output, 30V DC 20mA
Di Do Option
9 non-voltage contact inputs, 12 open collector outputs
Power Supply
100 to 240V AC, 50/60Hz, <15VA (100VAC) / <25VA (240VAC)
Operating Temp
0 to 50°C
Humidity
20 to 80% RH
Dimensions Mm
150(W) × 144(H) × 181.8(D)
Weight Kg
Approx. 1.0 (6-CH type)
Protection
IP65 (front panel)
Compliance
CE Marking
