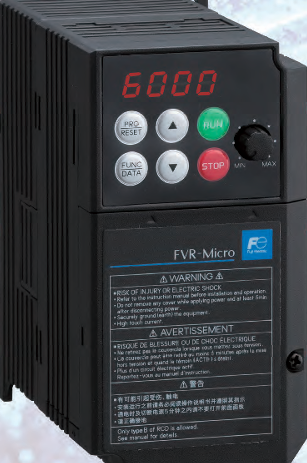

FVR-Micro Compact Inverter
Description
The FVR-Micro Series is Fuji Electric’s new generation compact inverter designed for general-purpose applications. It delivers strong performance with a simple interface, built-in PID control, Modbus communication, and flexible installation in a compact body. Ideal for fans, pumps, conveyors, mixers, and small industrial machinery.
Features
- Simple, compact, and smart design
- Built-in RS-485 Modbus communication
- Equipped with PID control for temperature, pressure, and flow
- Multi-stage frequency (16 steps), jog operation
- Remote/local operation modes
- Non-linear V/f curve support
- Analog input/output (0–10V / 0–20mA)
- Built-in braking transistor
- IP20 enclosure
- CE/UL/cUL approved
- 0.1–400Hz frequency range
- Built-in fan or natural cooling depending on model
Specifications
Power Supply Options:
- Single-phase 200V (FVR***AS1S-7E)
- Three-phase 400V (FVR***AS1S-4E)
Applicable Motor Ratings: 0.4kW, 0.75kW, 1.5kW, 2.2kW, 3.7kW
Frequency Range: 0.1 to 400 Hz (0.01 to 400 Hz for single-phase models)
Rated Input Voltage:
- 3-phase 380–480V ±10%
- Single-phase 200–240V ±10%
Overload Capacity: 150% for 1 minute
Braking Transistor: Built-in
Enclosure: IP20 (IEC 60529), UL Open Type
Cooling: Fan or natural cooling
Control Methods: V/f, PID
Input/Output: Analog (V/mA), Digital I/O
Communication: RS-485 Modbus RTU
Mounting: Panel mount
Weight: ~0.6–1.3 kg depending on model
Certifications: CE, UL, cUL
