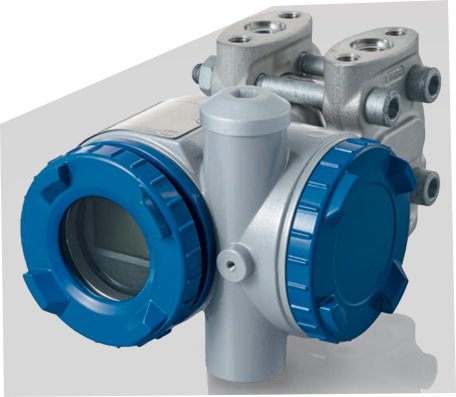

Smart Pressure, Differential Pressure, and Level Transmitter
Description
The FCX-A IV Series by Fuji Electric is a high-accuracy, high-speed smart transmitter offering measurement of pressure, differential pressure, and level. Certified under SIL2/SIL3 for functional safety, it is ideal for critical process industries requiring fast response, long-term stability, and a range of sensor materials for aggressive applications.
Features
- High accuracy: ±0.065% (standard), ±0.04% (optional)
- Fast measurement cycle: 40 ms
- Long-term stability: ±0.1% over 5 years
- Micro capacitance silicon sensor with floating design
- Digital indicator with bar graph and error code display
- Non-contact field configurator for parameter setup
- Functional Safety Certified: IEC 61508 SIL2/SIL3
- Resistant to extreme environments and overloads
- Wide range of diaphragm materials (Hastelloy-C, Monel, Tantalum, Titanium, Zirconium)
- HART communication protocol supported
Specifications
Measurement Ranges: 1 kPa to 50,000 kPa depending on model
Accuracy: ±0.065% (standard), ±0.04% (optional)
Response Time: 40 ms
Stability: ±0.1% over 5 years (typical)
Power Supply: 10.5–45V DC
Output Signal: 4–20 mA, HART Protocol
Operating Temp: Sensor –40 to +120°C, Electronics –40 to +85°C
Mounting Types: L-type, T-type housings for vertical/horizontal pipes
Process Connection: Rc1/4, NPT1/2, Flange, others
Material Options: 316L SS, Hastelloy-C, Monel, Tantalum, Titanium, Zirconium
Protection: IP66/67 equivalent (based on model)
Options: Digital display, degreasing, oxygen/chlorine service, stainless tag
