FUJI ULTRASONIC FLOWMETER
Description
Fuji Electric’s ultrasonic flowmeters offer non-intrusive, high-accuracy flow measurement solutions for steam, liquids, and air across various industrial applications, using advanced transit time difference technology.
Features
- Clamp-on design: No pipe cutting or pressure loss
- Applicable to steam, liquids, and compressed air
- Wide range of pipe diameters supported (13 mm to 6000 mm)
- High accuracy with fast response time (as low as 0.2 s)
- Supports RS-485 communication and analog outputs

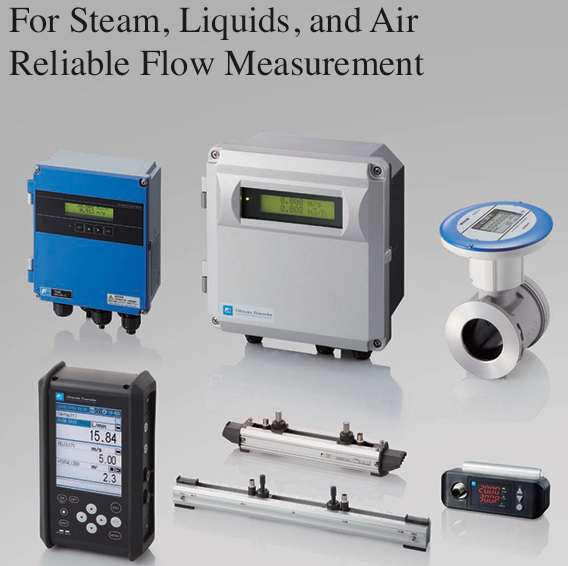

- Available in compact, portable, and advanced types
- Optional temperature and pressure input for mass flow rate conversion
- Low-maintenance, non-contact sensors
- Ideal for energy monitoring and system optimization
Specifications
Measurement methods: Transit-time difference method
Measurable fluids: Steam (120–180°C), Liquids (-40 to 200°C), Air (-10 to 60°C)
Pipe sizes: 13 mm to 6000 mm
Accuracy: Up to ±1.0% of rate (depending on model)
Response time: 0.2 to 1.0 seconds
Outputs: 4–20 mA DC, pulse, alarm (varies by model)
Communication: RS-485 (Modbus)
Power: 100–240 V AC or 24 V DC or lithium-ion battery (10-year life)
Protection rating: IP65/IP66/IP67 (model dependent)
