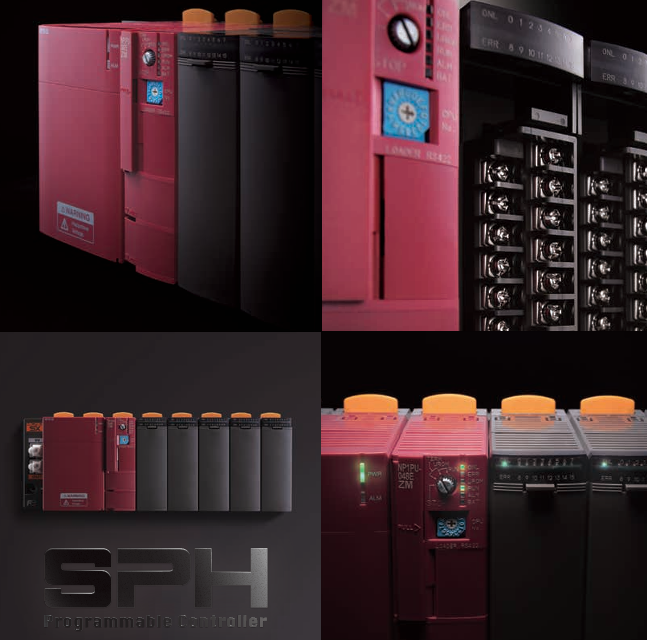

FUJI MICREX-SX SPH PROGRAMMABLE CONTROLLER
Description
A high-speed, high-reliability programmable controller series with support for large-scale control systems, redundant architectures, and advanced open network compatibility.
Features
- IEC 61131-3 compliant programming with ST, LD, FBD, SFC, IL
- Up to 512K steps of program capacity and 65,536 I/O points
- Ultra-fast instruction execution (as fast as 4 ns)
- Multi-CPU configurations with up to 8 CPUs
- Support for redundant CPUs, networks, and power supplies
- Compatible with open networks: Ethernet, EtherCAT, DeviceNet, PROFIBUS-DP, FL-net, BACnet MS/TP
- High-speed E-SX bus with 4096-word I/O and 100 Mbps bandwidth
- Advanced maintenance features: auto diagnostics, system monitoring
- Software tools: SX-Programmer Expert (D300win), Standard version available
Specifications
I/O capacity: Up to 65,536 points
Program capacity: Up to 512K steps depending on CPU model
Instruction speed: Basic instructions as fast as 4 ns
Communication: Ethernet, RS-485, RS-232C, USB, and SD card interfaces
Network protocols: Modbus, EtherCAT, DeviceNet, PROFIBUS-DP, FL-net, OPCN-1
Memory backup: Flash memory and lithium battery with up to 5-year retention
Certifications: CE, UL, RoHS, IEC61131-2, NK, LR
Environment: -25 to +70°C storage, 0 to +55°C operation, 20–95% RH non-condensing
